Design category: B
Overall length: cm 1005
Certified length: cm 930
Internal length: cm 875
Overall width: cm 332
Internal width: cm 208
Tubes diameter: cm 64
Weight without engines: kg 2000
Capacity of people: 16
Maximum power: hp 600
Compartments: 6
Fuel tank: L 480
Water tank: L 90
Tubes material: Neoprene-Hypalon 1600 gr/m²
G.R.P.: Triple Hull Moulding
Plans and patents: Marlin Boat
Stern height: 2XL
Stainless steel and fiberglass bow nose with line passage and inox cleats.
Bow locker and anchor locker with sunbathing cushion.

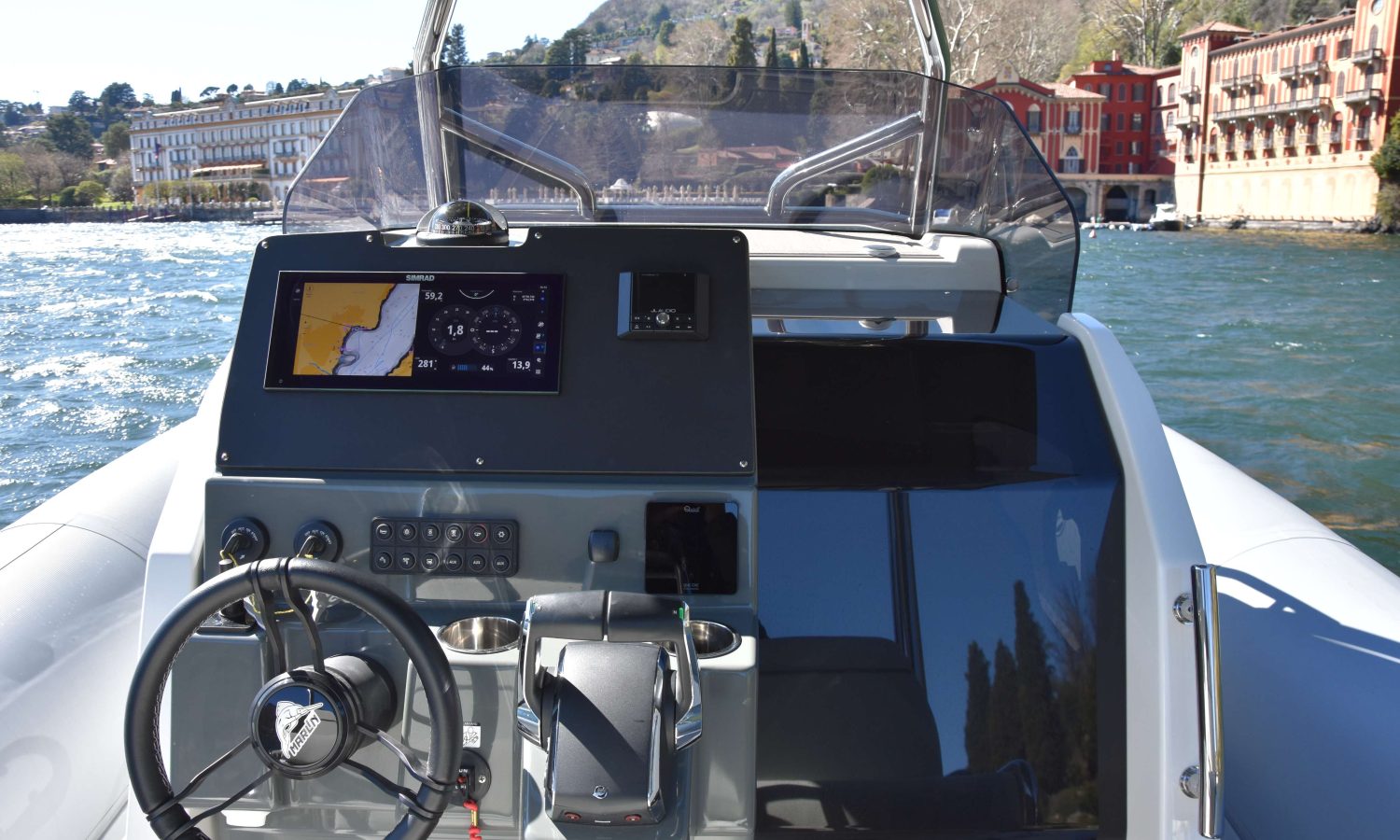

Central driving console with windshield, stainless steel side handrails, Fenix instrument panel, 12-user electronic button panel with BLINK digital management, complete electrical system, leather steering wheel, compass, navigation lights, sliding door for cabin access with lock, 2 side windows with opening portholes and two-seater sofa towards the bow.
Bow cabin setup with wooden sink cabinet, Corian countertop, electric toilet, LED lighting and cushions covered with waterproof outdoor material.
Pilot and co-pilot area with separate seats, central armrest, bar cabinet with sink, cutting board, Fenix cover, and 65-litre refrigerator.
Stern layout with U-shaped sofa consisting of three independent lockers, perimeter backrests, central electric table (optional) transformable into a large sundeck.
Stern beach area with platforms completely covered in EVA, telescopic ladder with retractable handrail and perimeter handles at water level, two mooring cleats and shower.
Complete exterior cushioning in closed-cell foam with smooth SKY cover.
Total EVA floor covering.
90-litre water tank
40-litre black water tank.
480-litre fuel tank.
Electric windlass with remote control, Trefoil 7.5 kg stainless steel anchor, 50 metres of galvanized chain.
140 mm bow thruster.
Epsilon super-high holding power anchor 6 kg with stainless steel bow roller (difference)
Water skiing towing pole
Stainless steel and fiberglass hard top with led lights, stainless steel light/flag pole
8 courtesy led lights
2 stern underwater led lights
Hot water system with 220v boiler
220V on-board system with protections, 1200w inverter and battery 165A
Total solid Teak cladding
Steering and seat covers
Set of floorboards and pillows for cabin bed setup
Stainless steel rollbar with lights and extensible bimini
Stern teak table with electric gas pedestal, stainless steel handle and sunbathing cushion
Stern bimini for hard top with carbon poles
4-bow stainless steel bimini
Cushions colour and quilting variant, Spradling tissue
Tubes colour variant
Fiberglass colour variant (not black)
Lifting strops package for launching with stainless steel shackles
Simrad NSX display GPS 12” con eco e cartografia
Simrad ULTRA WIDE 3015 con eco e cartografia
Simrad NSX doppio display GPS 12” con eco e cartografia
Simrad RS 40-B VHF con ricetrasmettitore AIS di classe B, GPS integrato e antenna
JL stereo system with 4 x 6.5” speakers
Battery charger with shore power cable and stainless steel socket for 2 batteries with protections
