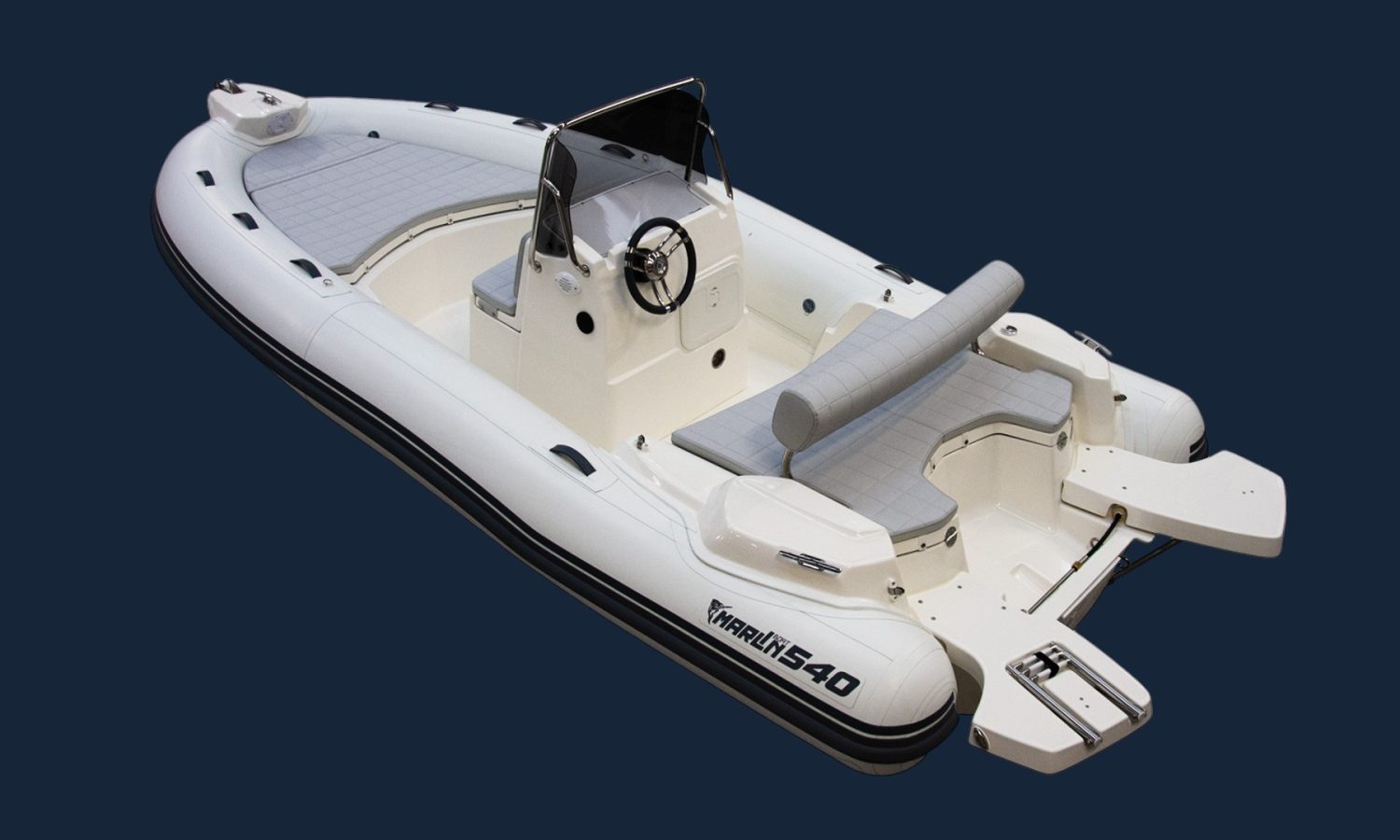

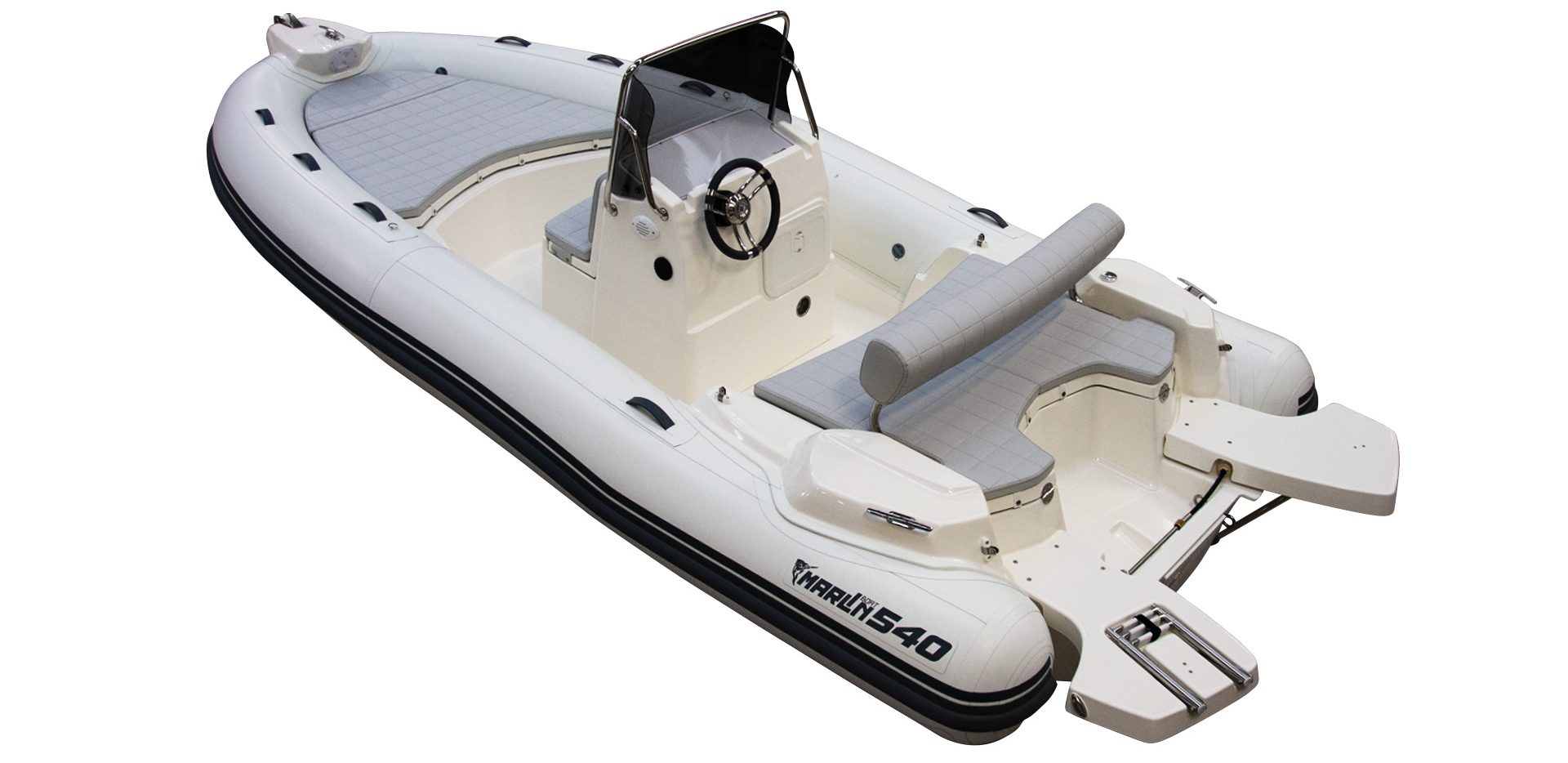

MARLIN 540

At 5.40 meters in length, it’s perfect to pair with a 40-horsepower outboard engine, making it ideal for those without a boating license.

This boat is simple and functional but built with high construction quality and remarkable sturdiness. All these features make the 540 ideal for rental use and for boaters looking for a low-maintenance and durable RIB.

Layout and Comfort

The simple yet well-designed layout of the Marlin 540 offers everything needed for comfortable day trips. The seating is basic but comfortable, with optimized onboard space to ensure freedom of movement and ease of use, making it ideal for beginner boaters or rental purposes.

______

Safety and Ergonomics

Thanks to its solid construction and protective tubes, the Marlin 540 provides a safe and well-protected environment. The spaces are designed to ensure easy movement and stability, even for those new to boating. Everything is within reach for simple and intuitive handling.

______

Performance

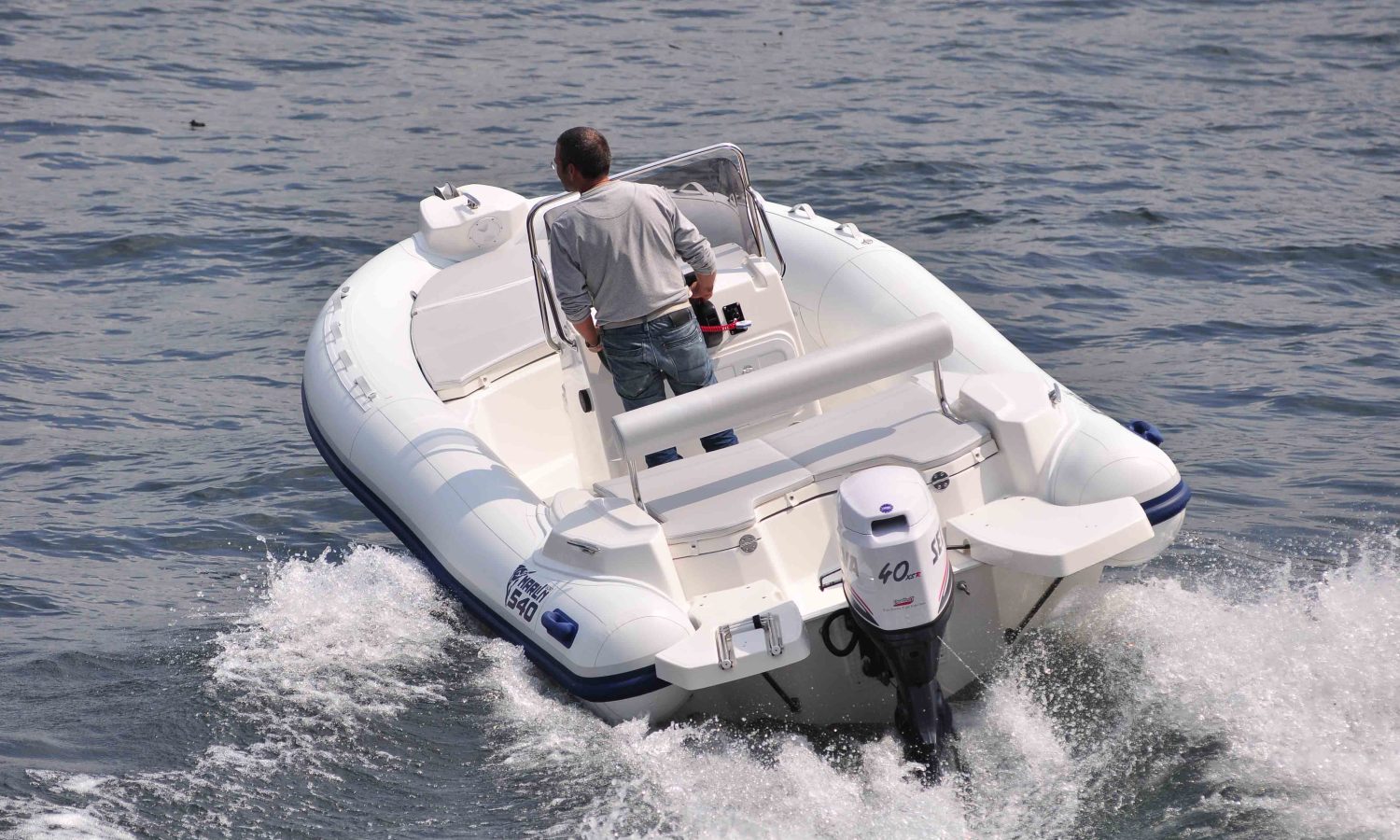

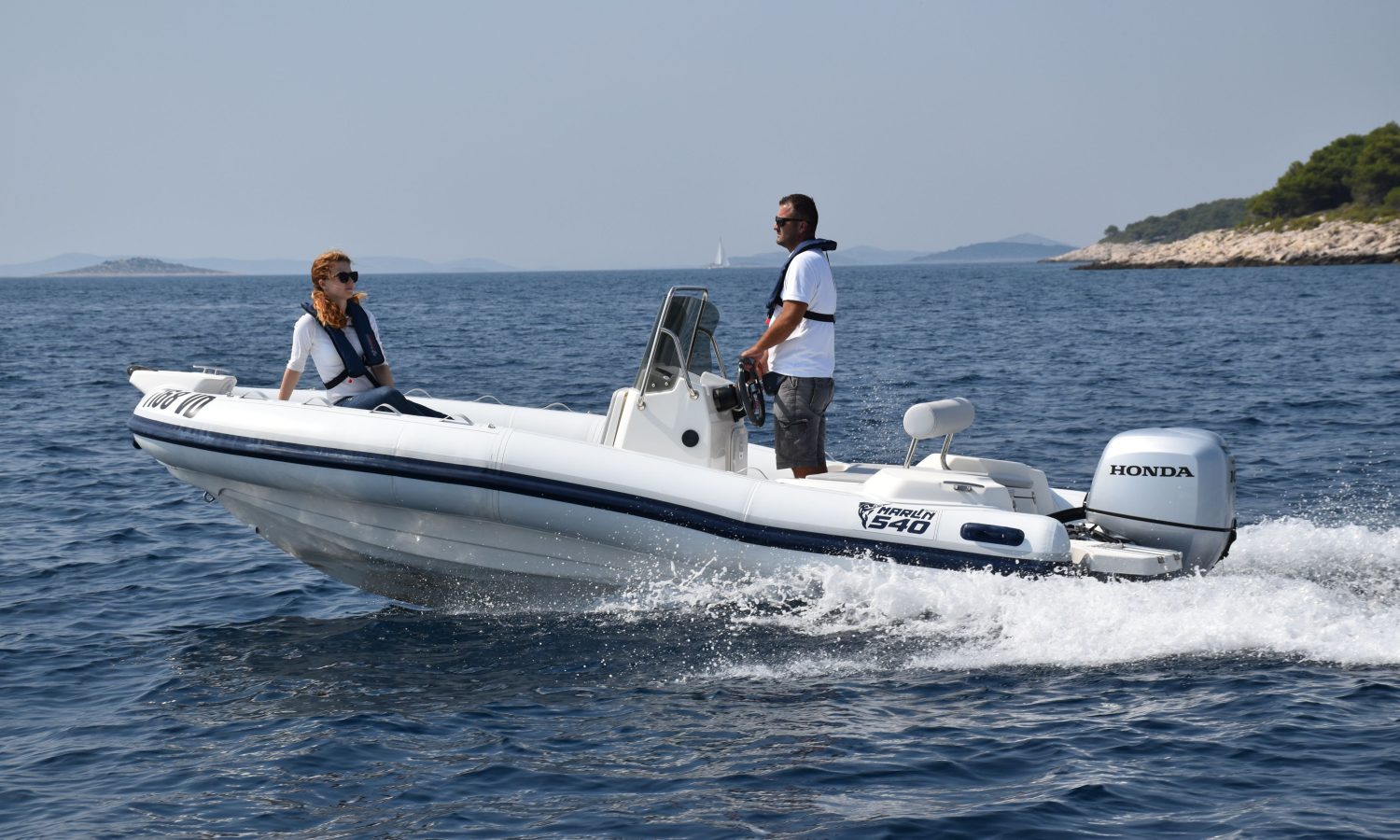

Compact and well-balanced, this boat performs very well with a 40-horsepower engine, offering excellent maneuverability even without a boating license. The hull and tubes ensure good stability and safety while navigating, making it perfect for rental use and for those looking for a solid, easy, and durable boat.

______

Technical Features

Design category C

Overall length cm 540

Certified length cm 495

Internal length cm 450

Overall width cm 236

Internal width cm 142

Tubes diameter cm 46

Weight without engines kg 460

Capacity of people 8

Maximum power hp 115

Compartments 5

Fuel tank L 90

Water tank L 40

Tubes material Neoprene-Hypalon 1300 g/m²

G.R.P. Triple Hull Moulding

Plans and patents Marlin Boat

Projects and patents Marlin Boat

Stern height 1-L

Standard Features

Bittle inox per ormeggio

Steering console with windscreen, stainless steel handrail, instrument panel, steering, two seats in the front

Cushion set for seat

Mooring and trasport stainless steel eyebolts

Stainless steel mooring bollards

Tubes reparation kit

Haulage stainless steel eyebolts

Stainless steel fuel tank

Mechanic Steering

Extra Features

Concealed shower head with tank

Electric inflator 12 V and pressure gauge

Wiring with eletric panel, horn, 360° light, bilge pump

Lifting strops kit with shackles

Stern bathing platforms with stainless steel ladder

Complete bow sundeck extension (2 cushions and dunnage)

Inox roll-bar with led lights

Stainless steel ladder

Alluminium bimini 3 arches

Stainless steel bimini

Steering and seats covers

Total mooring cover

Hydraulic steering system 150 Hp

Cushions color variant

Tubes color variant

Electric equipment
