Design category: B
Overall length: cm 1205
Certified length: cm 1122
Internal length: cm 1070
Overall width: cm 388
Internal width: cm 248
Tubes diameter: cm 70
Weight without engines: kg 3600
Capacity of people: 16
Maximum power: hp 1200
Compartments: 7
Fuel tank: L 720
Water tank: L 140
Waste water capacity: L 65
Tubes material: Neoprene-Hypalon 1600 gr/m²
G.R.P.: Triple Hull Moulding
Plans and patents: Marlin Boat
Projects and patents: Marlin Boat
Stern height: 2XXL 1XXL – 2XL

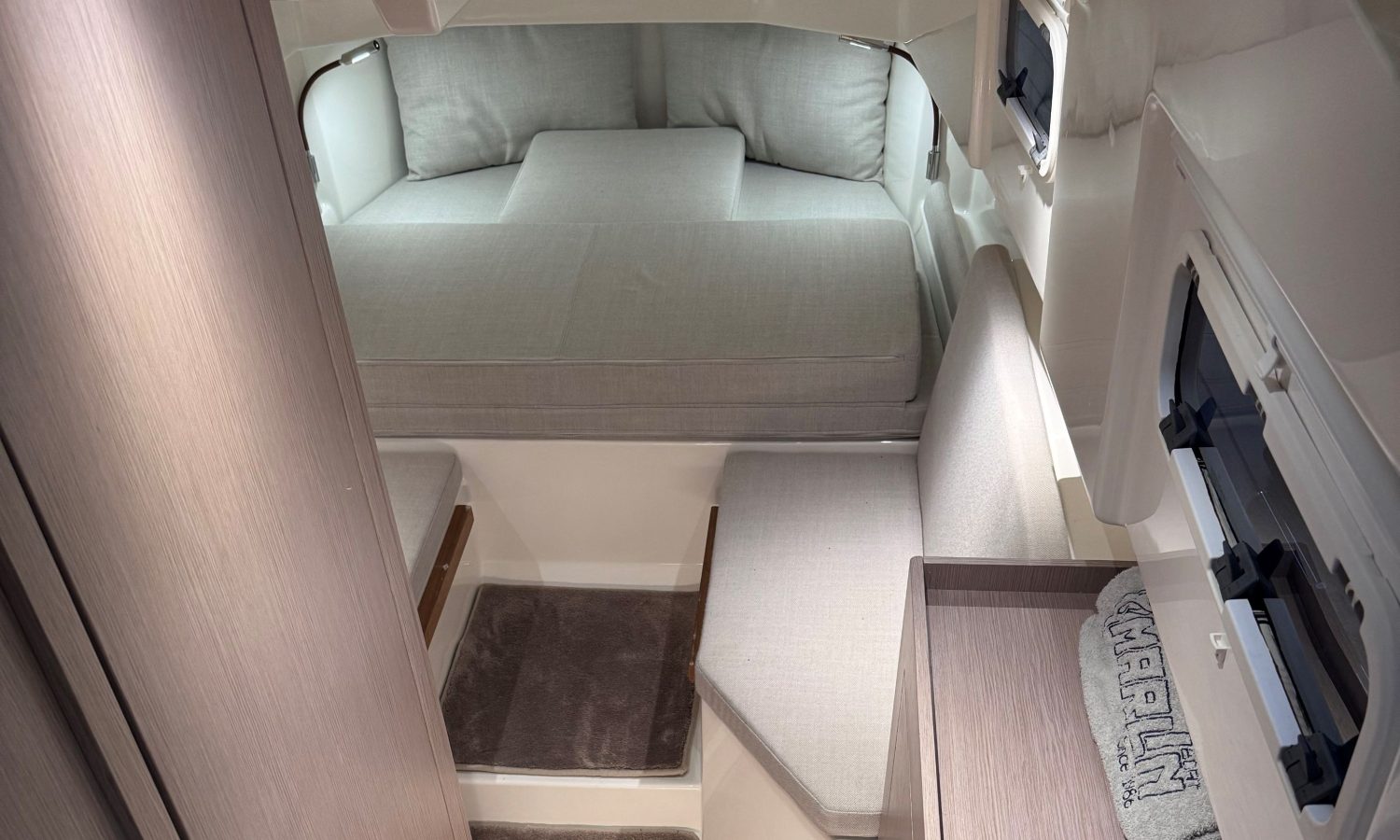

Bow cabin set-up with flamed teak wood wall and wardrobe, large double bed, sofas.
Separate bathroom with shower and cabinet in flamed Teak with sink and Corian top
Bow with Seasmart rope guide and retractable cleats, electric winch with remote control, Ultramarine 12 kg stainless steel anchor, locker for chain, ropes and fenders and bow sofa
Central driving console with windshield, stainless steel side handrails, Fenix instrument panel with 18-user electronic control panel with BLINK digital management, leather and stainless steel steering wheel, compass, Lopolight navigation lights, sliding side door for cabin access with lock, 4 opening side ports with curtain, large front sundeck and sofa at the bow
Pilot and co-pilot formwork with separate armchairs, central armrest, bar cabinet with sink, chopping board, cabinet in Teak, Fenix doors and cover and 90-liter fridge.
Opposite stern benches with electrically operated central table in Teak. A system of backrest mechanisms allows them to be transformed into dinette, forward facing navigation seats or sundeck
Five square meters stern beach area covered in synthetic Teak with platforms, two telescopic ladders with retractable climbing handles and a perimeter handle at the water level, two retractable Seasmart mooring cleats and shower
Technical room
Total 8 mm solid teak cladding
Complete closed cell cushions and Silvertex fabric
Cabin cushions covered with outdoor fabric
White LED cockpit courtesy lighting
BLINK digital 12V electrical system, 140A service battery, dock charger and cable
820 liters fuel tank
160 liters water tank expandable to 260 liters
65 liters black water tank
Bow thruster
Additional 42 liter fridge in the cabin
Diesel generator
Stainless steel and fibreglass hard top with Lopolight led lights, carbon and stainless steel light/flag pole
4 stern underwater led lights system
4 led retractable courtesy lamps
Secret system
Hot water system with 220v boiler
Air conditioning system with inverter
220V on-board system with protections and 1200w inverter
Flap system Interceptors Zipwake
Stereo plus system: Fusion MS-RA670 8 speakers signature 3 zone and 1500W amplifier
Stereo Fusion MS-RA670 standard 6 external XS speaker system
Steering and seat covers
Simrad halo 20+ radar
Simrad NSS12 evo3S 12″ GPS display with thru-hull sounder bronze and cartography
Simrad NSS12 evo3S 12″ GPS display with thru-hull sounder bronze and cartography
Simrad RS 40-B VHF with Class B AIS Tx-Rx transceiver, integrated GPS and antenna
Teack table with removable pedestal
Stern bimini for hard top with carbon poles
Bow bimini for hard top with carbon poles
Cushions color and quilting variant
Tubes color variant
Fiberglass color variant (not black)
Mooring package: 4 fenders with stainless steel support, 4 ropes 16mm eye-spliced(2x 10 mt 2x 5 mt)
Italy navigation equipment package within 12 miles 8 people
Lifting strops package for launching with shackles, power take-offs and bow towing plates
