24X – Marlin Ribs

Layout and Design

Marlin 24 X combines elegance and functionality in every detail. With two large sunbeds—one at the bow and one at the stern—and refined finishes, every corner is designed to offer a sophisticated onboard experience. Modern lines and clean design blend with well-distributed spaces, creating a comfortable and stylish environment at every moment of your journey.

______

Safety and Ergonomics

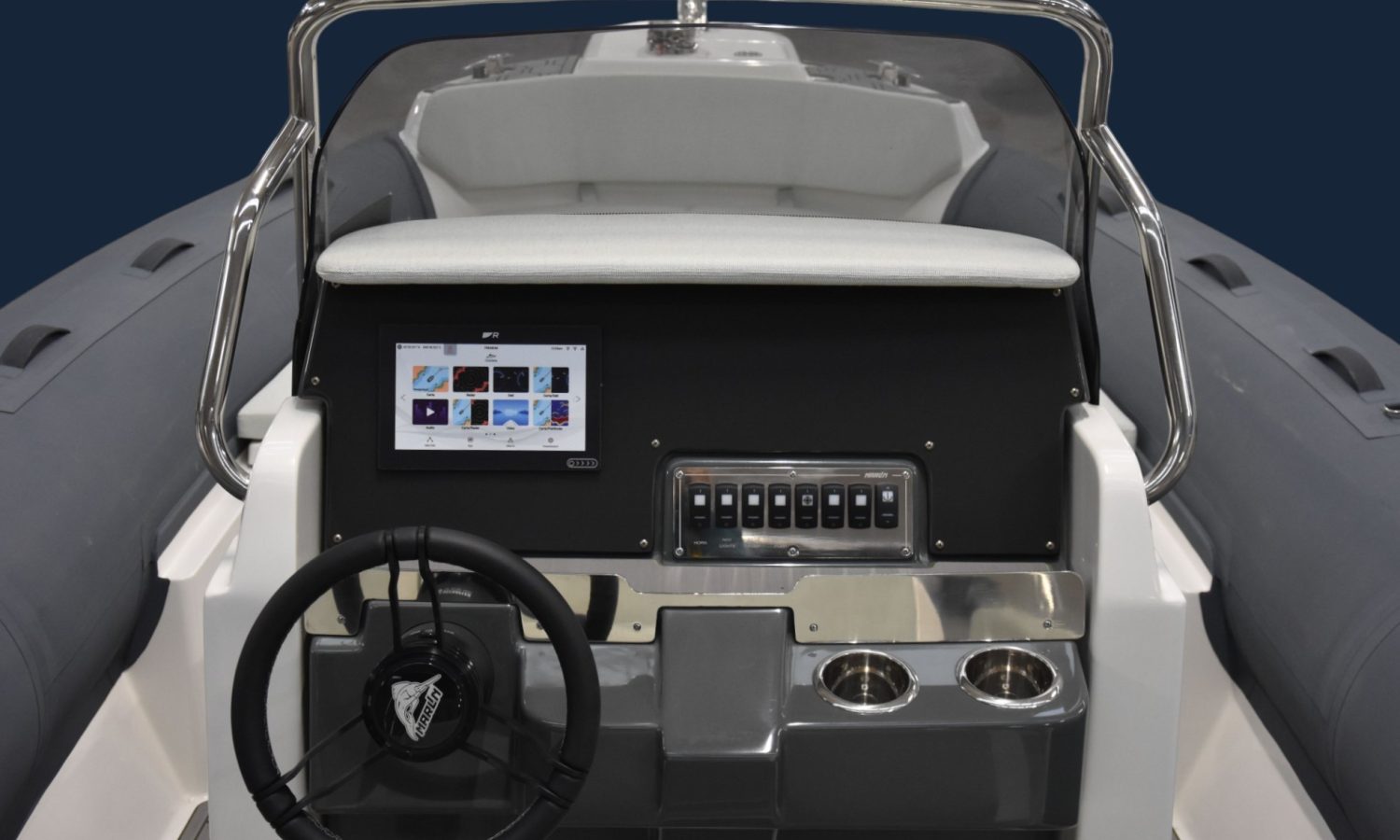

The walkways onboard are wide and well-protected, allowing smooth and safe movement at all times. Even the bow sunbed is shielded by the tubes and equipped with handy handrails for a secure grip. The compact, well-organized helm features clearly visible and easily accessible controls—even in challenging navigation conditions—for immediate and safe handling.

______

Comfort

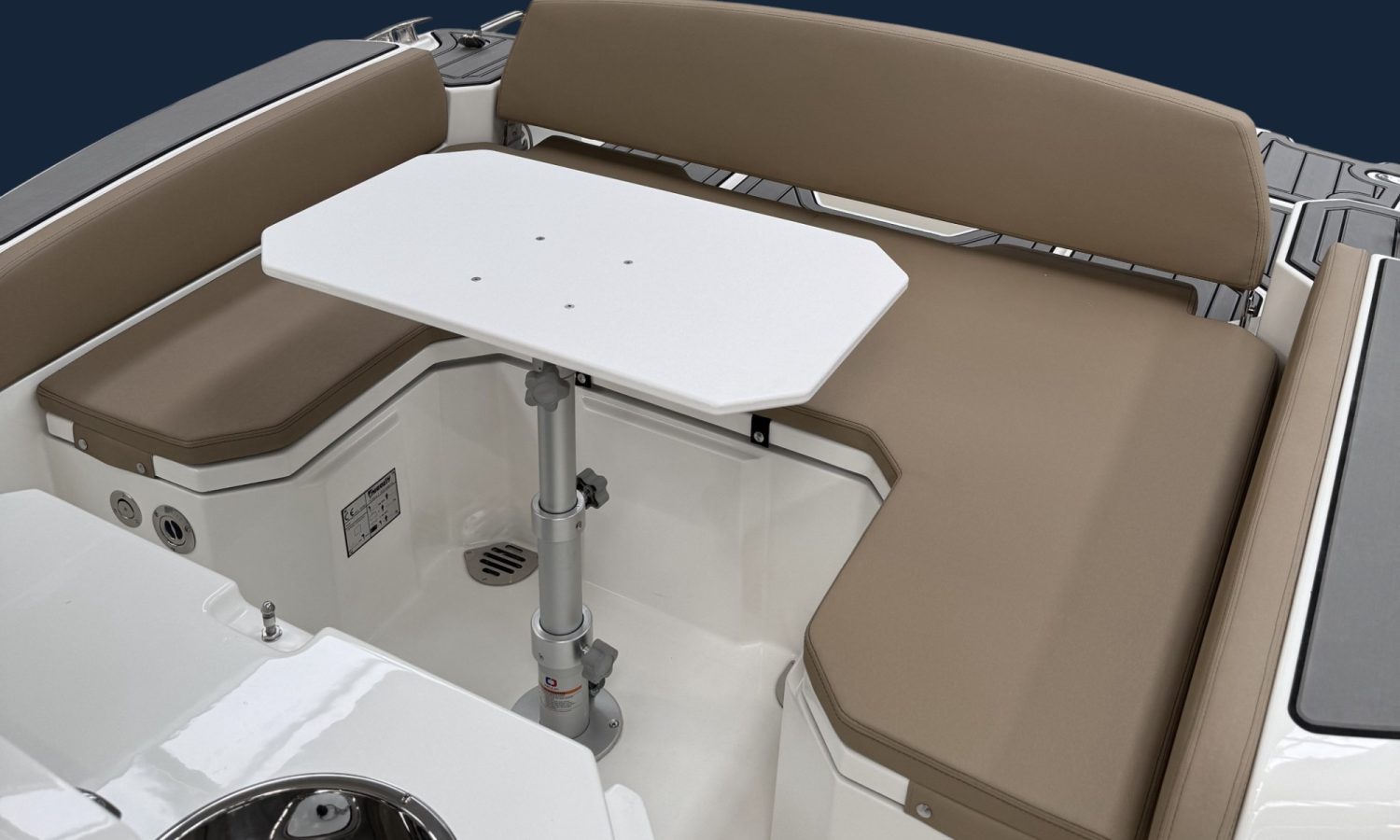

Every detail onboard is designed to offer maximum comfort. The helm console houses a toilet, while the cockpit can be equipped with a kitchen seat featuring a fridge, sink, and cutting board, transforming it into a social space. The stern area is enhanced by a table, perfect for meals and relaxation; at the bow, there’s an expandable sunbed with an extension.

______

Performance

Marlin 24 X offers the perfect balance between sportiness and comfort. Its deep V hull with four chines and a redan ensures quick planing and stability even at high speeds. With a fuel consumption of just 27 liters per hour at 25 knots, it’s ideal for long trips with low fuel usage. The boat maintains a parallel attitude to the water, reducing the need for trim adjustments and enhancing safety and ease of handling.

______

Technical Features

Design category: C

Overall length: cm 725

Certified length: cm 660

Internal length: cm 600

Overall width: cm 298

Internal width: cm 178

Tubes diameter: cm 58

Weight without engines: kg 850

Capacity of people: 14

Maximum power: hp 250

Compartments: 5

Fuel tank: L 230

Water tank: L 40

Tubes material: Neoprene-Hypalon 1300 g/m²

G.R.P.: Triple Hull Moulding

Plans and patents: Marlin Boat

Projects and patents: Marlin Boat

Stern height: 1XL

Standard Features

360° navigation Led light

Bittle inox per ormeggio

Steering console with windscreen, stainless steel handrail, instrument panel, steering, two seats in the front

Haulage stainless steel eyebolts

Mooring and trasport stainless steel eyebolts

Stainless steel mooring bollards

Reflex foam stern coating for platforms, stern, stringers and nose

Wiring with electric control panel, horn, 360° light, bilge pump

Tubes reparation kit

Haulage stainless steel eyebolts

Stern bathing platforms with stainless steel ladder

Reflex foam coating for platforms, stern, stringers and nose

Stainless steel fuel tank

Water tank with pump and shower

Hydraulic steering

Extra Features

Bathroom dressing

Water skiing towing pole

Stern underwater blue led lights

Cockpit fridge 18 l

Stainless steel and fybreglass hard top with led navigation lights

Cockpit and platform complete lighting blue led lights

Lifting strops kit with shackles

Extension for bow sunbathing unit

Re-flex floor covering

Stainless steel rollbar with led lights and extensible bimini

Cooking seat with stainless steel drawer fridge and sink

Stern table sunbathing extension with cushion

Mooring cover

Total mooring cover

Stern bimini for hard top with carbon elastic poles

Stern stainless steel 4 arch bimini

Tubes color variant

Cushions color variant

Anchor windlass with GRP bow mould, rope, chain and stainless steel anchor

Electric equipment

Transport cover
